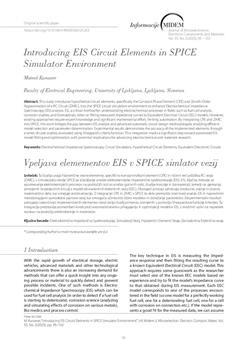

Introducing EIS circuit elements in SPICE simulator environment
Vpeljava elemementov ! EIS v SPICE simlator ! vezij

english

2025

volume 55, issue 2

circuit simulators   electrochemical impedance spectroscopy   equivalent electronic circuits   hypothetical circuit elements

Strokovno društvo za mikroelektroniko, elektronske sestavne dele in materiale
(Obvezni izvod spletne publikacije)

This study introduces hypothetical circuit elements, specifically the Constant Phase Element (CPE) and Zeroth-Order Approximation of a RC Circuit (ZARC), into the SPICE circuit simulation environment to enhance Electrochemical Impedance Spectroscopy (EIS) analysis. EIS, a critical method for understanding electrochemical processes in fields such as fuel cell analysis, corrosion studies, and biomaterials, relies on fitting measured impedance curves to Equivalent Electrical Circuit (EEC) models. However, existing approaches require expert knowledge and significant mathematical effort, limiting automation. By integrating CPE and ZARC into SPICE, this work bridges the gap between EIS analysis and advanced automatic circuit design methodologies, enabling efficient model selection and parameter determination. Experimental results demonstrate the accuracy of the implemented elements through a series of case studies, evaluated using Sheppard’s criteria function. This integration marks a significant step toward automated EIS model fitting and optimization, with potential implications for advancing electrochemical and materials research.
